Applications :

• The cables are used as balise cables for ERTMS (European Rail Traffic Management System) railway networks. The cables are armoured and can provide low reduction factor.

Standards :

• CEI 20-11
• CEI 20-14
• CEI 20-29
• CEI 20-34
• CEI 46-4
• CEI 103-10

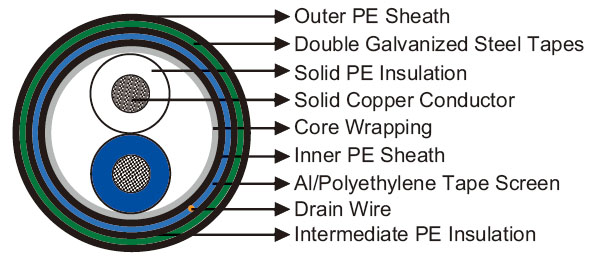

Construction :

• Conductors : Solid annealed copper, 1.6 mm nominal diameter.
• Insulation : Solid polyethylene.
• Stranding : Conductors will be stranded with dielectric fi llers in order to get a circular core shape.
• Core Wrapping : Plastic tape (s) with overlapping.
• Inner Sheath : Low density polyethylene.
• Screen : Aluminium/polyethylene tape longitudinally applied and overlapped.
• Drain Wire : Tinned copper drain wire.
• Intermediate Sheath : Low density polyethylene.
• Armour : Two galvanized steel tapes.
• Outer Sheath : Low density polyethylene.

Electrical Characteristics at 20 °C :

• Nominal Conductor Diameter	mm	1.6
  Maximum Conductor Resistance (DC)	Ω/km	21.5
  Mutual Capacitance	Ω/km	8.21
  Nominal Characteristic Impedance @8.9 KHz	Ω	130
  Nominal Characteristic Impedance @560 KHz	Ω	110
  Maximum Attenuation @560 KHz	dB/km	3.8
  Insulation Resistance	MΩ.km	10000
  Minimum Dielectric Strength core to screen (DC)	V	1000
  Minimum Dielectric Strength core to core (DC)	V	3000
  Reduction Factor @100V/km 50Hz		0.6

Mechanical and Thermal Properties :

• Minimum Bending Radius : 8×OD (static); 16×OD (dynamic).
• Temperature Range : -30°C to +70°C (during operation); -20°C +50°C (during installation).

Dimensions and Weight :



Cable Code	Number of Pairs	Nominal Sheath Thickness mm			Nominal Overall Diameter mm	Nominal Weight kg/km
		Inner	Inter.	Outer
1.6mm Conductor, 3.4mm Insulated Wire
RS/BGA-2Y2Y(L)2YB2Y-1P1.6	1	1.0	0.8	1.6	16	334







Anti Induction	UV Resistant	Water Resistant	Mineral Oil Resistant	Rated Voltage	Laid In Ducts	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1
